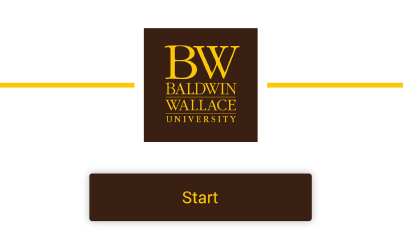

Start Screen
Touch the Start button on the screen to start the system.

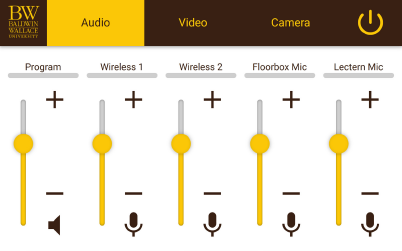

Audio
Adjust the volume for individual microphones and the presentation audio.
Power - press to turn the system off (a confirmation box will appear).
Volume - control the microphone and source volume. Slide up to increase and down to decrease the volume. The slider bar shows the overall volume level— mute a source is located at the bottom.

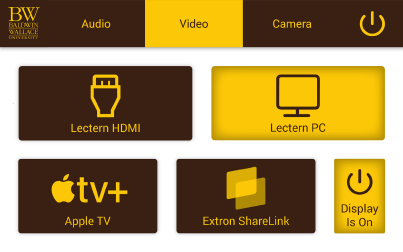

Video
Change the video source that will be displayed to the room.
Power - press to turn the system off (a confirmation box will appear).
Lectern HDMI - change the video source to the Lectern HDMI. The HDMI cable will need to be attached to an external laptop.
Lectern PC - change the video source to the Lectern PC using your BW credentials.
AppleTV - change the video source to AppleTV. Best used with MacBooks and Apple products.
ShareLink - change the video source to ShareLink (a wireless program to share content). Best used with Windows computers.
Display Power - shows the display power status. Press to change the power state.

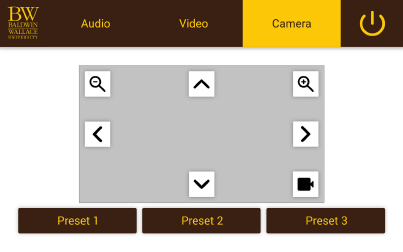

Camera
Control the camera position and recall presets. Presets can be set by positioning the camera to the desired location and pressing and holding a preset button for three seconds.
Power - press to turn the system off (a confirmation box will appear).
Camera Control - control the positioning of the camera. Arrows move the camera left, right, up, and down. Then plus (+) to zoom in and minus (-) to zoom out.
Presets - after setting the camera to the desired position, press and hold the preset button for three (3) seconds to save the camera position.

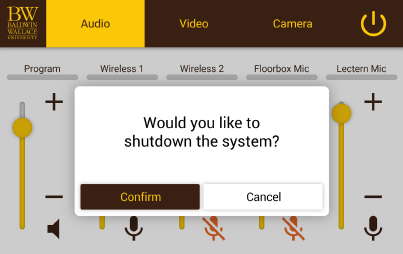

Shutdown Page
A confirmation box will appear after pressing the Power icon in the top right corner of the control panel. Press Cancel to keep the system on, or press Confirm to shut the system down.
Power - press to turn the system off (a confirmation box will appear).
